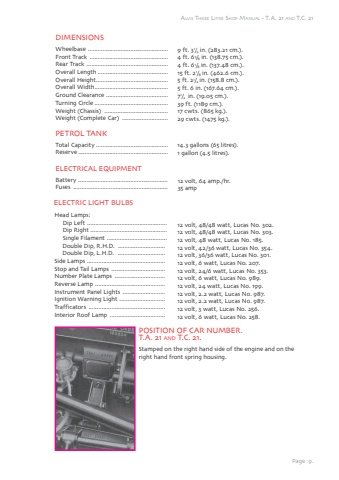

Page 9.Alvis Three Litre Shop Manual - T.A. 21 and T.C. 21ELECTRICAL EQUIPMENTBattery .......................................................Fuses ..........................................................ELECTRIC LIGHT BULBSHead Lamps: Dip Left .................................................Dip Right ...............................................Single Filament .....................................12 volt, 48/48 watt, Lucas No. 302.12 volt, 48/48 watt, Lucas No. 303.12 volt, 48 watt, Lucas No. 185.POSITION OF CAR NUMBER.T.A. 21 and T.C. 21.Stamped on the right hand side of the engine and on the right hand front spring housing.Double Dip, R.H.D. .............................Double Dip, L.H.D. .............................Side Lamps ................................................Stop and Tail Lamps .................................Number Plate Lamps ...............................Reverse Lamp ...........................................Instrument Panel Lights ..........................Ignition Warning Light ............................Trafficators ...............................................Interior Roof Lamp ..................................12 volt, 42/36 watt, Lucas No. 354.12 volt, 36/36 watt, Lucas No. 301.12 volt, 6 watt, Lucas No. 207.12 volt, 24/6 watt, Lucas No. 353.12 volt, 6 watt, Lucas No. 989.12 volt, 24 watt, Lucas No. 199.12 volt, 2.2 watt, Lucas No. 987.12 volt, 2.2 watt, Lucas No. 987.12 volt, 3 watt, Lucas No. 256.12 volt, 6 watt, Lucas No. 258. DIMENSIONSWheelbase .................................................Front Track ................................................Rear Track ..................................................Overall Length ...........................................Overall Height............................................Overall Width.............................................Ground Clearance ......................................Turning Circle .............................................Weight (Chassis) .......................................Weight (Complete Car) ............................PETROL TANKTotal Capacity ............................................Reserve .......................................................9 ft. 31/2 in. (283.21 cm.).4 ft. 65/8 in. (138.75 cm.).4 ft. 61/8 in. (137.48 cm.).15 ft. 21/8 in. (462.6 cm.).5 ft. 21/2 in. (158.8 cm.).5 ft. 6 in. (167.64 cm.).71/2 in. (19.05 cm.).39 ft. (1189 cm.).17 cwts. (865 kg.).29 cwts. (1475 kg.).14.3 gallons (65 litres).1 gallon (4.5 litres). 12 volt, 64 amp./hr.35 amp
